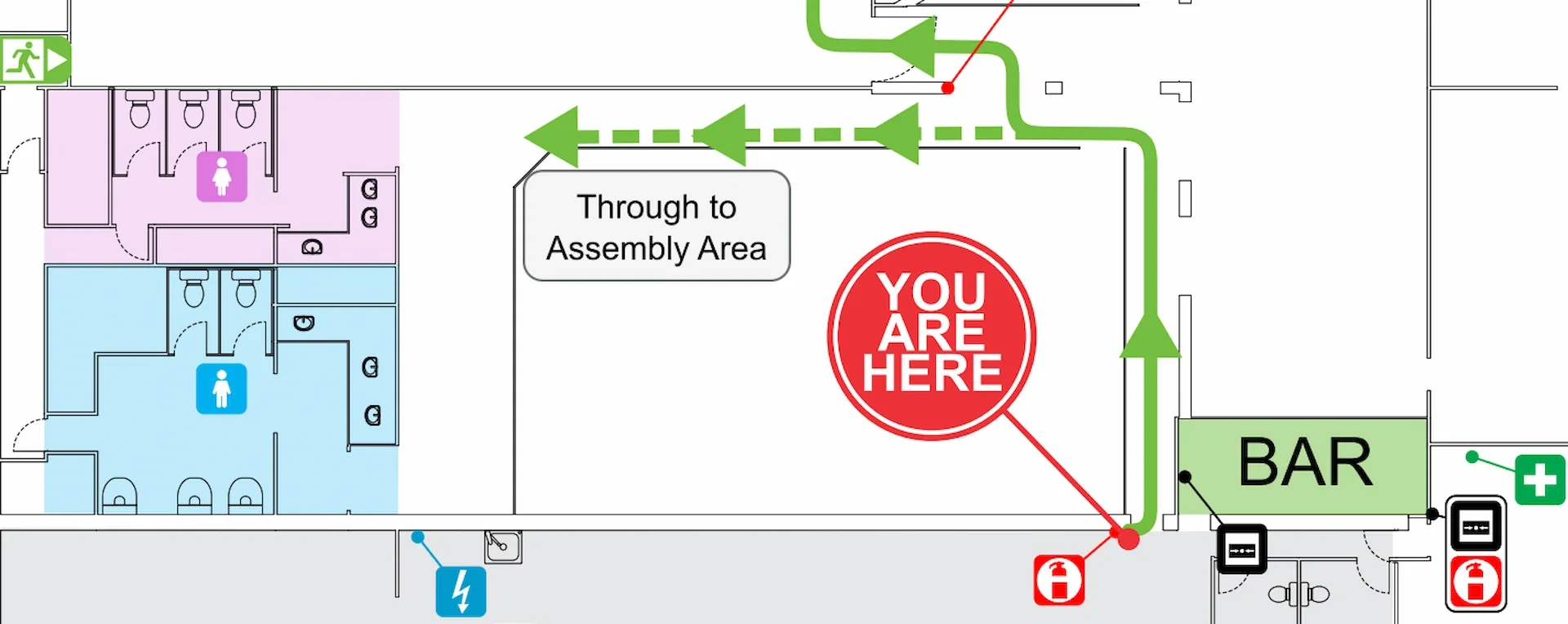

Evacuation diagrams can show all or part of the building
Our evacuation diagrams can be scaled so that evacuees can quickly see whether to turn left, right, turn around, or continue forward to the nearest exit.
Evacuation signs must be easily understandable with a reasonable scale.
The signs must be securely attached to a wall or the internal side of a door.
Evacuation diagrams can be created in portrait or landscape mode.

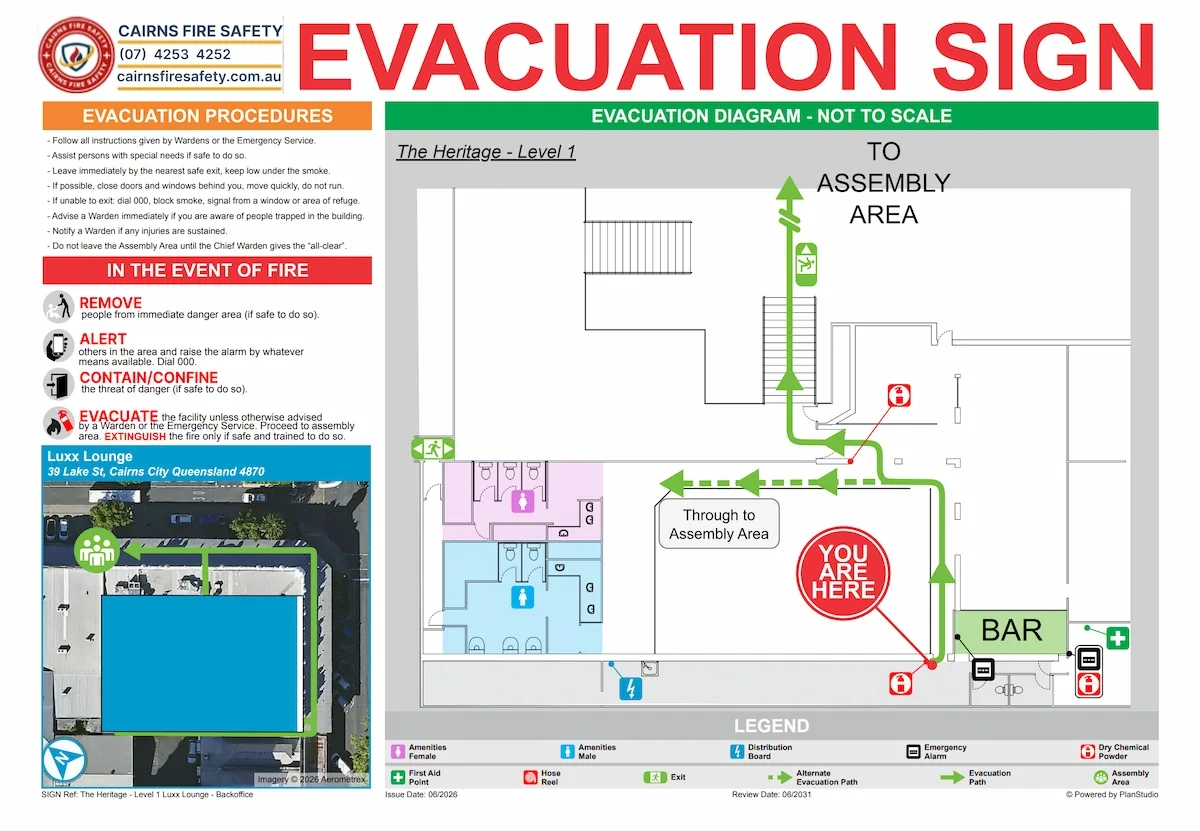

Licensed Premises in Cairns
Evacuation diagrams must show the place that corresponds to the place in the building where the diagram is displayed.

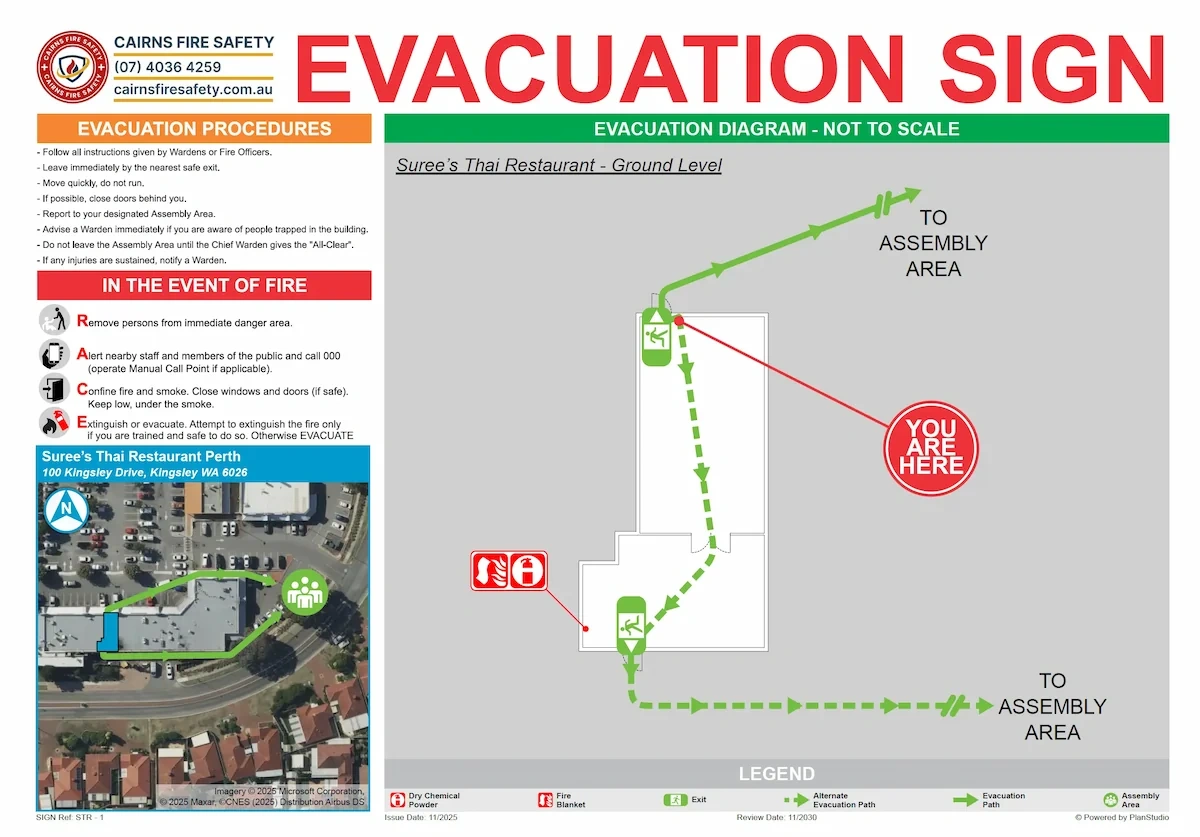

Thai Restaurant in Perth
Evacuation diagrams must show the route from the place of the sign to the nearest exit of the building.

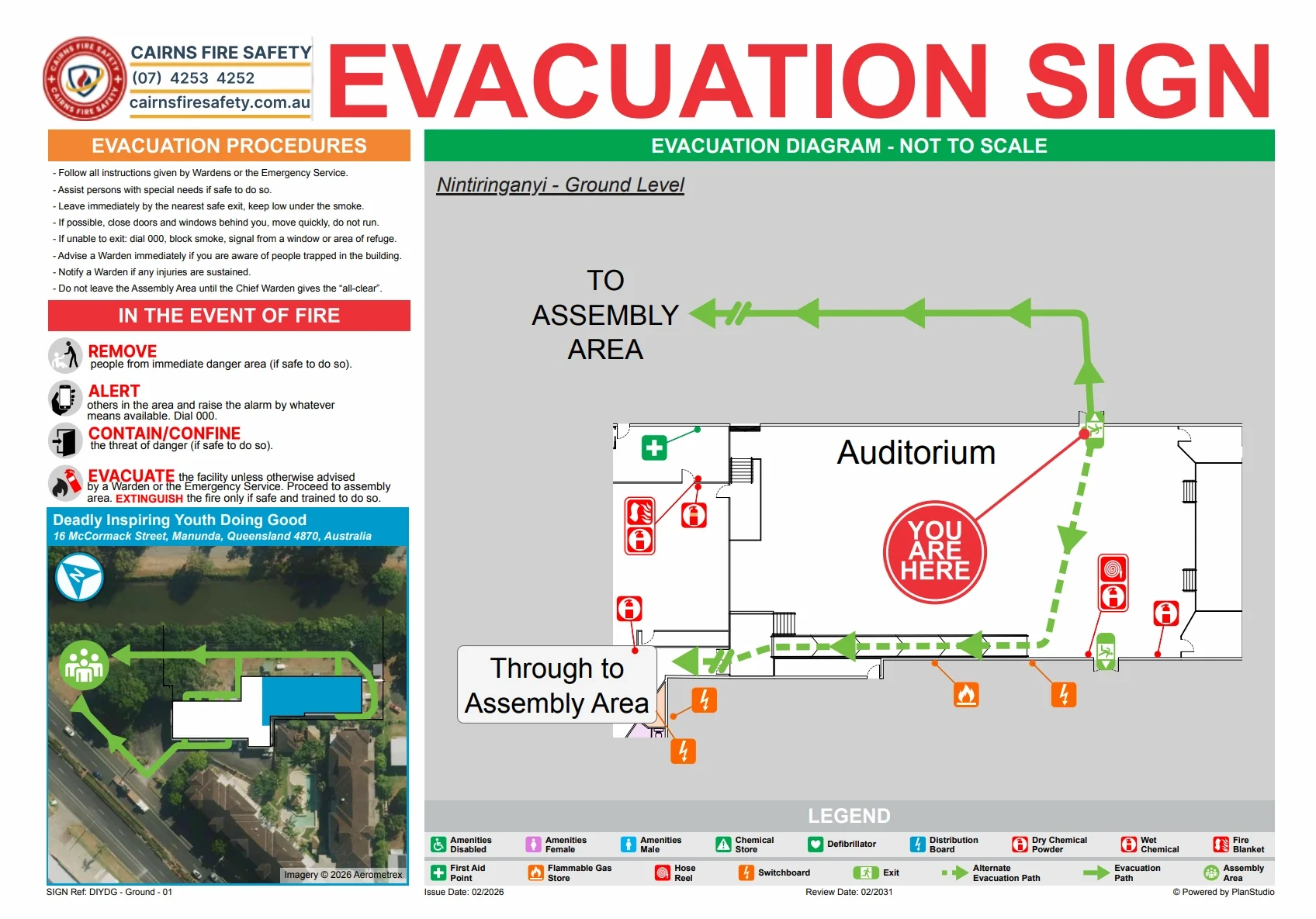

Community Support Provider in Cairns
Evacuation diagrams must show the firefighting equipment in the building (or part of the building).

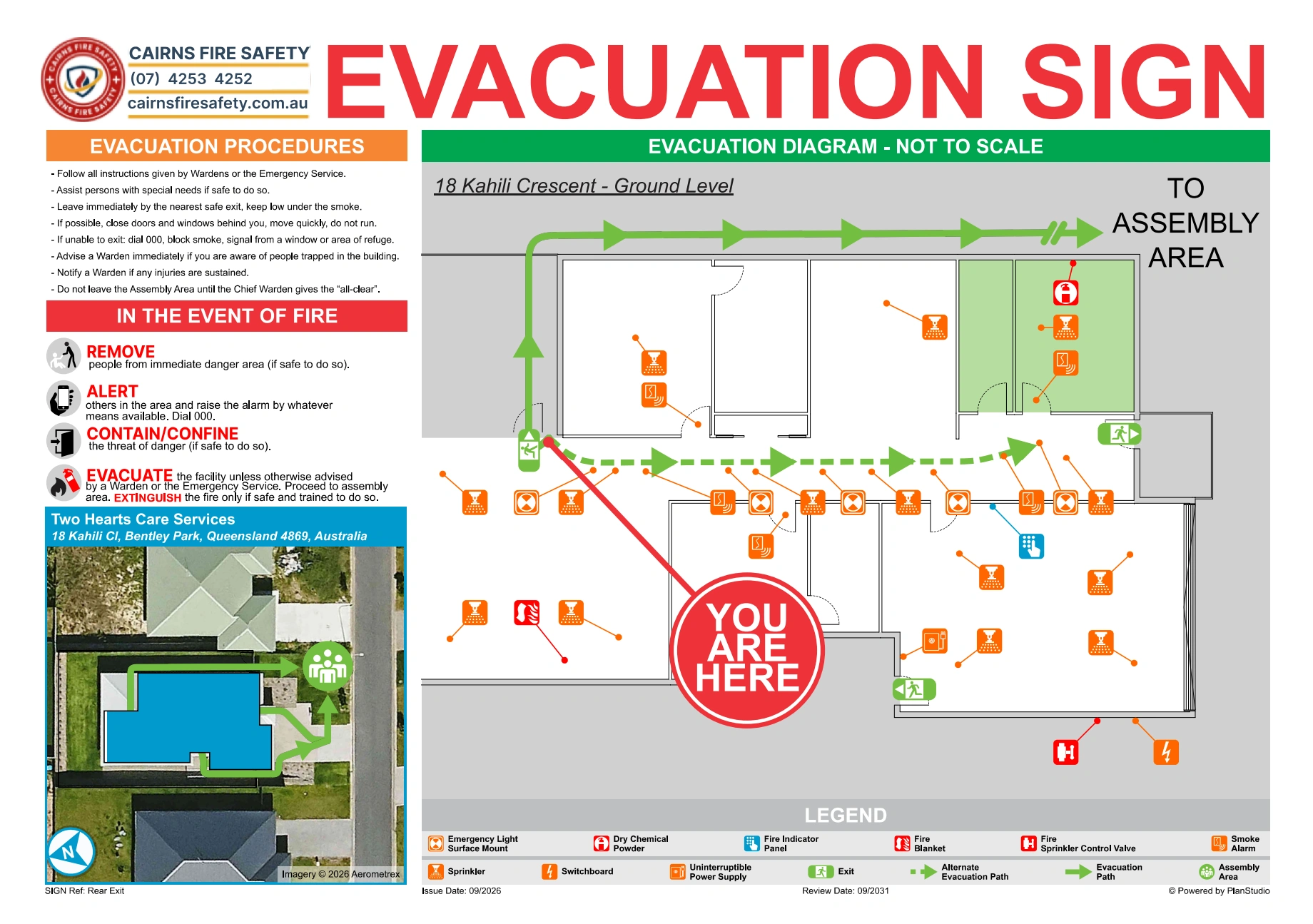

NDIS Purpose-Built Housing
Evacuation signs should show all of the fire safety installations that are located inside the building (or part of the building) that is in the diagram.

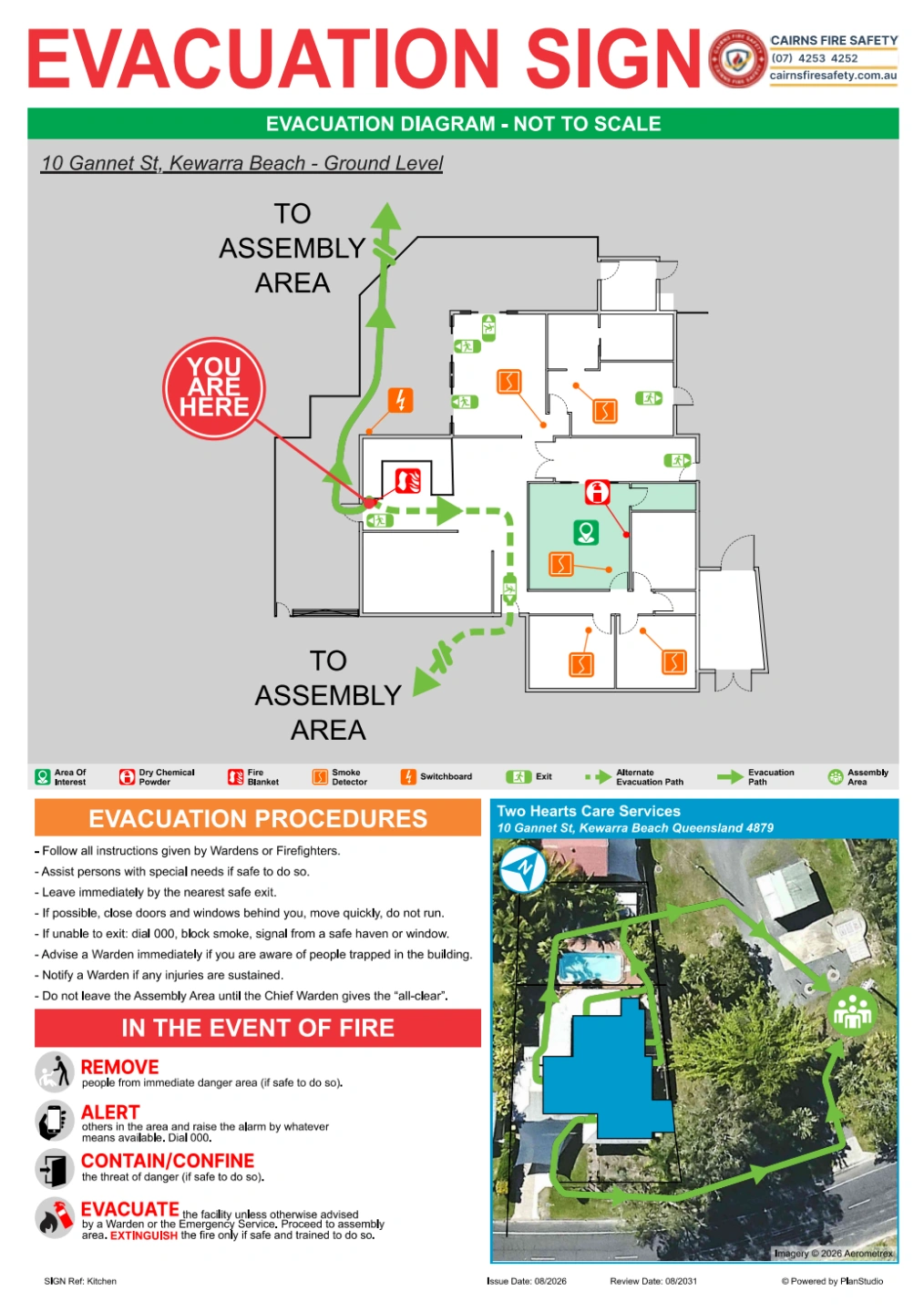

NDIS Housing
Evacuation signs are A3 size and can be published in landscape or portrait view.
What our clients say
Hear from clients who trust Cairns Fire Safety for clear evacuation diagrams, practical fire safety procedures and reliable compliance support across Cairns and FNQ.
Need evacuation diagrams or fire safety compliance support?
Call Cairns Fire Safety to discuss clear evacuation diagrams, practical procedures and signage for your building.
